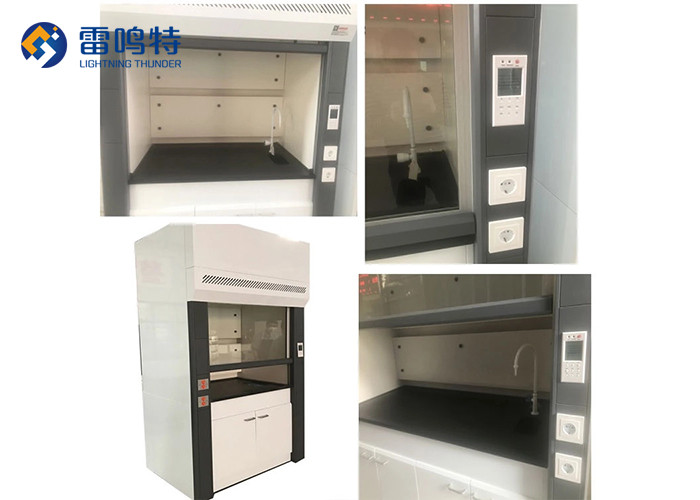

Large Scale Anti Corrosion Laboratory Fume Hood High Temperature Resistant

Supply Ability: 10,000 pieces per month



Packing details

Packed in wooden boxes or according to customer requirements.

Port Tianjin





1. Steel fume hood: It is made of Shanghai Baosteel's steel or 1.0mm cold-rolled steel of the same grade, and the surface is treated with Akzo Nobel EPOXY spraying anti-corrosion treatment.



2. Countertop: solid physical and chemical board, epoxy board, ceramic board, marble, with curved edges. The outer edge of the two-way chamfer; it can resist acids, alkalis, strong oxidants and other corrosive agents. (Thickness, matching for brand customers)



3. OTC liner: Shanghai VIA anti-drop board with a thickness of 6mm, side windows are used for waterway repair, circuit or airway repair; the use of three-stage design can make different proportions of harmful gases in the experiment Can be effectively discharged faster.

4. Window: 5mm thick safety glass, the window adopts stainless steel chain drive, counterweight, CVT balance weight design, free lifting, height can be stopped at any position, no noise, greatly extending the service life; automatic return function (with self-returning Elastic pulley and automatic return belt), the opening height is above the center, and the window has the function of automatically returning to the middle.



5. Suspension cable: Use timing belt or stainless steel chain push-pull connection to ensure the stability of the control door lift and achieve the best anti-corrosion effect. The belt core uses 7-core steel wire to ensure that the belt carrying capacity is far greater than the weight.



6. Hood: It is made of PVC welding material and has the function of condensing water tank.

7. LCD control panel: After the controller is powered on, the buzzer sounds once, the red indicator light is on, and the system enters the standby state. In standby mode, pressing the [On / Off] button will activate the controller. At this time, the green light is on and the LCD backlight is on.



8. Noise (matching with ventilation system): ≤60dB (GB).



9. Others: equipped with electronic display device to ensure that the exhaust volume is the smallest reasonable value in actual use, noise (and ventilation system): ≤60dB (GB).



10. Adjustable feet: special corrosion-resistant plastic injection feet for laboratory, adjustable height 30mm-50m.



Name	Model	Dimensions H * W * D (mm)
Fume hood	LMT1200	2350 * 1200 * 900
Fume hood	MT1500	2350 * 1500 * 900
Fume hood	LMT1800	2350 * 1800 * 900
